Battery Electric pallet truck Standing on 2.5t
Basic Info
Model No.: XPA25
Product Description

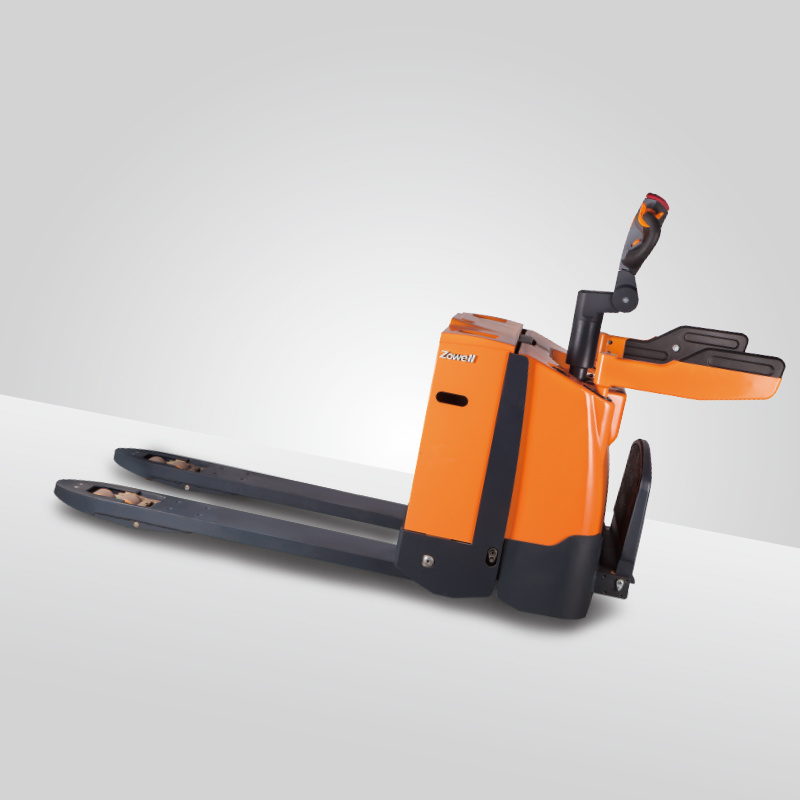

Electric pallet Truck Battery standing on 2.5t
Zowell ride on electric pallet jack is widely used in warehouse to transport materials on pallets. Swiss brand pump and germany brand handle provides excellent performance in handling. Like other electric stacker, electric reach stacker and electric towing tractor, XPA takes brushless AC motor with high efficiency, which provides continuous strong power to manage your materials to the place they supposed to go.
Main Features
1. SWISS BUCHER brand Hydraulic pump.2. Regenerative braking function
3. CURTIS electronic controller
4. Germany Frei handle
5. Emergency reversing device in the handle provides improved operating safety.
6. Emergency power disconnect switch.
7. Braking applied with handle upright and horizontal position, increasing the safety of the truck.
8.Five points structure brings the truck more stability
Technical Data
Identification | Product model designation | XP20 | XP25 | XP30 | ||
Drive unit | Electric | |||||
Operate type | Standing or Pedestrian | |||||
Load capacity | Q kg | 2000 | 2500 | 3000 | ||
Load center | C mm | 600 | 600 | 600 | ||
Load distance, Center of drive axle to fork back | X mm | 140 | 140 | 140 | ||
Wheelbase | Y mm | 1300 | 1300 | 1300 | ||
weight | Truck weight (without battery) | kg | 475 | 485 | 500 | |
Axle loading , loaded(front/rear) | kg | 1077/1696 | 1215/2003 | 1343/2235 | ||
Axle loading , unloading(front/rear) | kg | 441/128 | 451/130 | 456/132 | ||
Wheel | Tires | Polyurethane | ||||
Drive wheels size | mm | 230×75 | 230×75 | 230×75 | ||
Loaded wheels size | mm | 80×70 | 80×70 | 80×70 | ||
Balance wheels size | mm | 100×40 | 100×40 | 100×40 | ||
Wheels number, front/rear(x=driven wheels) | 1x-2/4 | 1x-2/4 | 1x-2/4 | |||
Tread ,front | mm | 525 | 525 | 525 | ||
Tread ,rear | mm | 390 | 390 | 390 | ||
Dimensions | Height, mast lowered | h1 mm | 1345 | 1345 | 1345 | |
Lift height | h3 mm | 205 | 205 | 205 | ||
Forks height, lowered | h5 mm | 85 | 85 | 85 | ||
Height of tiller in drive Position(max/min) | h6 mm | 1345/985 | 1345/985 | 1345/985 | ||
Overall length | L1 mm | 1882 | 1882 | 1882 | ||
Length to face of forks | L2 mm | 732 | 732 | 732 | ||
Overall width | b1 mm | 784 | 784 | 784 | ||
Fork dimensions | s/e/l mm | 180/55/1150 | 180/55/1150 | 180/55/1150 | ||
Maximum forks width | b3 mm | 570/680 | 570/680 | 570/680 | ||
Minimum ground clearance | M mm | 30 | 30 | 30 | ||
Aisle width for pallets 800x1200 lengthways | Ast mm | 2132 | 2132 | 2132 | ||
Turning radius | Wa mm | 1716 | 1716 | 1716 | ||
Performance | Travel speed loaded/unload | Km/h | 5.2/6 | 4.8/5.6 | 4.8/5.6 | |
Lift speed loaded/unload | mm/s | 40/50 | 40/50 | 40/50 | ||
Lowering speed loaded/unload | mm/s | 50/40 | 50/40 | 50/40 | ||
Max grade ability loaded/unload | % | 8/15 | 8/15 | 8/15 | ||
Service brake | Electromagnetic brake | |||||
Electric motor | Drive motor rating | kW | 1.2 (DC),1.5 (AC) | |||
Lift motor rating | kW | 2.2 | 2.2 | 2.2 | ||
Battery voltage/capacity | V/Ah | 24/180 | 24/210 | 24/240 | ||
Battery weight | kg | 180 | 240 | 280 | ||
others | Control unit type | Mosfet control | ||||
Sound level | Db(A) | <70 |
